stainless steel wedge wire screen/filter mesh
| Place of Origin: | Hebei, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Specifications
Stainless steel
Min slot:0.05mm-35mm(error:0.03mm)
Standard length:1m/5.85m
Design according to the customers' request
wedg
Specifications
Stainless steel
Min slot:0.05mm-35mm(error:0.03mm)
Standard length:1m/5.85m
Design according to the customers' request
Min slot:0.05mm-35mm(error:0.03mm)
Standard length:1m/5.85m
Design according to the customers' request

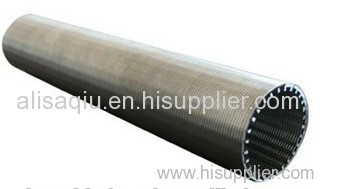

wedge wire screen/filter mesh
The strainer is a kind of filtered water tubing with the perforation.It can be used with the deep well pump,dive the water pump,also may be used in the water treating equipment,the environmental protection,the sea water transforms into the industrial water and life use water desalination treatment,running water treatment,water softening treatment,the petroleum industry,The petroleum product terminal filters and the chemical acid,the alkali liquid filters,the ethyl alcohol and so on the organic solution recycling filters.
- Materials:302, 304, 304L, 316, 316L stainless steel wire and low carbon wire(galvanized iron), can be design according to the customers' request.
- Min slot:0.05mm-35mm(error:±0.03mm)
- Filter:From outside to inside
- Styles of connection:by welding or by threaded male/female coupling.
- Standard length:1m/5.85m
Stainless Steel Wedge Wire Screen
Specification for reference
SIZE (INCH) | O.D (mm) | SLOT (INCH) | LENGTH (m) | COLLAPSE STERENG(PSI) | TENSILE WEIGHT (TON) | WRAP (thinck*deep) (mm) | RODS (mm) |
4 | 117 | 0.040 | 3-6 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
4 | 114.3 | 0.040 | 3-6 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
6 | 168.3 | 0.040 | 3-6 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
8 | 219.1 | 0.010 | 3-6 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.020 | 3-6 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.040 | 3-6 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
10 | 273.1 | 0.010 | 3-6 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.020 | 3-6 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.040 | 3-6 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
